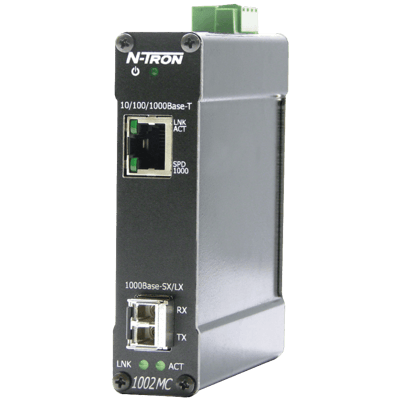

1002MC Industrial Media Converter
Brand: Red Lion ControlsThe N-TRON 1002MC is an unmanaged 10/100/1000BaseT to 1000BaseSX/LX Industrial Media Converter.
It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.
Features- Compact size, small footprint
- Unmanaged operation
- Full IEEE 802.3, 802.3u, 802.3z, and 802.3ab compliance
- Converts 10/100/1000BaseT to 1000BaseSX/LX
- Choose from multimode or singlemode LC style SFP (Mini-GBIC) gigabit fiber transceivers
- Extended environmental specifications
- -40º to 85º C operating temperature
- >2M Hours MTBF
- RJ-45 port supports full/half duplex operation
- Up to 2.0 Gb/s maximum throughput
- Supports up to 1,024 MAC addresses
- Store-and-forward technology
- RJ-45 port auto senses speed and flow control
- Full wire speed communications
- MDIX auto cable sensing (RJ-45)
- Hardened metal DIN-Rail enclosure
- LED link/activity status indication
- Redundant power inputs (10-30 Vdc)
Specifications
Brand
Approvals & Certifications
- ABS
- CE
- DNV
- FCC
- IEC
- RoHS
- UL
Environmental Protection
- NEMA TS1
- NEMA TS2
