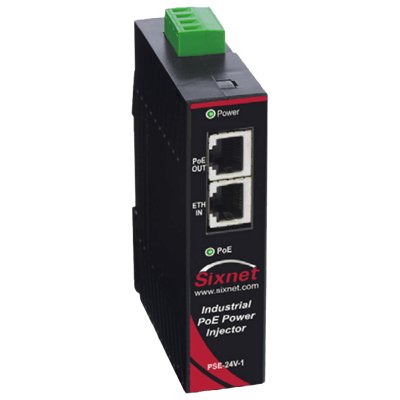

EB-PSE Industrial PoE Injector
Brand: Red Lion Controls
The EB-PSE-24V-1 or EB-PSE-48V-2 Industrial PoE Power Injectors add 48 Vdc power into 1 or 2 Ethernet ports so that you can pass power and data over the same wire to your Ethernet devices in the field.
The 24V-1 model steps up your 24 Vdc for sourcing 1 PoE port so no separate DC/DC converter is required.
The 48V-2 model is two injectors in one to save space and money.
Both are ultra-rugged, reliable and easy to use.
Features- IEEE 802.3af compliant PoE ports
- Power Sourcing Equipment (PSE) operation
- Auto-detection of PD (powered devices)
- Supplies up to 15.4 watts per channel
- Over-temperature and over-current detection
- Over and under-voltage protection
- True plug and play simplicity
- No user setting
- Ready to use right out of the box
- Trouble free operation
- Ultra-reliable 1,000,000+ hours MTBF
- Slim package for DIN rail or panel mounting
Specifications
Brand
Applications
- Industrial Automation & Control
- Process & Motion Control
- Video & Security
Approvals & Certifications
- ATEX
- CE
- CSA C22.2/14, 213 (Class I, Div. 2)
- EMC
- EMI
- FCC Part 15, ICES-003
- GOST
- IEC 60825-1, Class I, (Eye Safety)
- IEEE 802.3, 802.3 u, 802.3af
- RoHS
- UL 508, 1604
Approvals & Certifications
- EN 61010-1, 61000-6-4, 61000-6-2, 60079-15 (Zone 2, Category 3)
Circuit Protection
- Surge Protection
Consumption
- PoE Power Consumption: 15.4 W
Electrical Connectors
- RJ45 Port
Enclosure, Body Material
- Lexan
Environmental Protection
- IP30
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing
Input
- Power Input for 24 V-1 Models: 18-30 Vdc at 20 W, Max.
- Power Input for 48 V-2 Models: 45-56 Vdc at 31 W, Max.
Mounting
- DIN Rail Mounting
- Panel Mount
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Output
- PoE Power: 48 Vdc at 15.4 W
Power
- Power Input: 15,000 W (Transient Protection)
- Power Input: 5,000 W (Spike Protection)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
