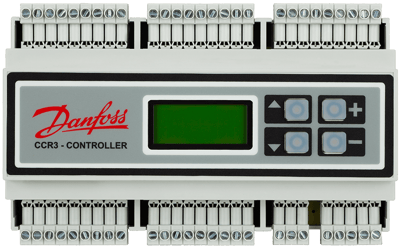

CCR3 Temperature Controller

Brand: Danfoss

The CCR3 Controller is an electronic controller for return temperature control in risers in one-pipe heating system based on supply temperature signal.

With CCR3 controller one-pipe heating system becomes efficient variable flow system with riser’s flow control based on heat demand.

CCR3 is dedicated to be used with AB-QM automatic balancing & control valve equipped with thermo Actuators type TWA-Z (NO) and remote temperature sensors type ESMC.
Features
  • Improved room temperature control
  • Eliminated overheating of the building
  • Reduced heating cost with payback time less than 4 years
  • Remote control of all temperature setting (no need to have direct access to risers)

Specifications

Brand

Accuracy

  • Temperature Accuracy: ± 0.5 K

Ambient Temperature Range

  • 0° to 50° C (32° to 122° F)

Communication

  • FOUNDATION Fieldbus (Fbus)
  • Modbus RTU
  • RS-485
  • USB

Consumption

  • Power Consumption: 6 VA

Display

  • LCD Display - Temperature Data Indication

Electrical Contacts

  • Normally Open

Environmental Protection

  • IP20

Input

  • Free Contact Relay (5 V, 1 mA) - for B1 & B2

Mounting

  • DIN Rail 35 mm

Output

  • 24 Vac, Max.
  • Output °C: 0-20 Vdc NPN Open Collector, Max.

Power Supply

  • 24 Vac

Relay Output

  • 0 to 24 Vac/Vdc, Max.

Sensor / Probe Type

  • Pt1000

Supply Voltage

  • 24 Vac

Temperature Range

  • -10° to 60° C (14° to 140° F) - Transport Temperature
  • -20° to 120° C (-4° to 248° F)
