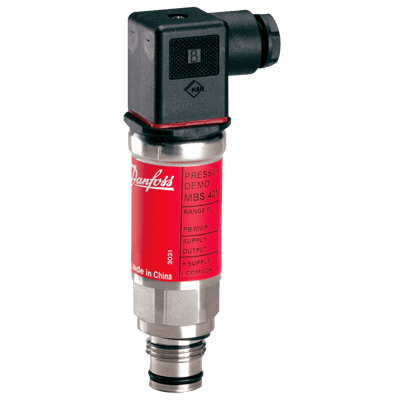

MBS 4010 Pressure Transmitter

Brand: Danfoss

The standard pressure transmitter MBS 4010 with flush diaphragm is designed for use in almost all industrial applications with non-uniform, high viscous or crystallizing mediums, and offers a reliable pressure measurement, even under harsh environmental conditions.

A robust design, an exellent vibration stability and a high degree of EMC / EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
Features
  • Designed for use in severe industrial environments
  • Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
  • O-ring sealing ahead of thread
  • Output signal: 4-20 mA
  • Electrical connections: Plug Pg 9
  • EN 175301-803-A or 2 m screened cable
  • Pressure connection: G ½ A; ISO 228/1
  • Temperature compensated and laser calibrated
  • For use in zone 2 explosive atmospheres

Specifications

Brand

Accuracy

  • ≤ ± 0.3 % of Full Scale - Typical Including Non-Linearity, Hysteresis & Repeatability
  • ≤ ± 0.8 % of Full Scale, Max.

Applications

  • Industrial Service

Approvals & Certifications

  • ATEX Zone 2 II 3 G Ex NA IIA T3 Gc -20° < Ta < 85° C
  • CE
  • EMC Directive: Emission (EN 61000-6-3), Immunity (EN 61000-6-2)
  • IEC 60068-2-6, 60068-2-64, 60068-2-27, 60068-2-32

BSP Connection

  • G 1/2” A Male, ISO 228-1, Flush

Burst Pressure

  • 4 x Full Scale

Cable Length

  • 6.56 feet (2 metres)

Cable Material

  • Poliolyfin
  • Polyethylene (PE) - Shrinkage Tubing

Compensated Temperature

  • 0° to 80° C (32° to 176° F)

Current

  • 28 mA - Current Limitation

Diaphragm Material

  • Flush

Electrical Connectors

  • DIN 3852 Form E
  • PG13.5 EN 175301-803-A
  • PG9 (EN 175301-803-A)
  • Plug Connection
  • Screened Cable

Electrical Protection

  • Polarity
  • Short Circuit

Enclosure, Body Material

  • 316 Stainless Steel, 1.4401

Environmental Protection

  • IP65
  • IP67

Hysteresis

  • ≤ ± 0.1 % of Full Scale

Insulation Resistance

  • > 100 megaohms at 100 V

Materials of Construction

  • Plug: Glass-Filled Polyamid, PA 6.6

Non-Linearity

  • ≤ ± 0.2 % of Full Scale

O-Ring Material

  • O-Ring 15 x 2, NBR - Seal Ahead of Thread

Output

  • 4-20 mA, 2-Wire - Nominal Output Signal (Short-Circuit Protected)

Overpressure & Static Pressure Limits

  • 2 x Full Scale

Pressure Range

  • bar: 0 to 60
  • kPa: 0 to 6,000
  • psi: 0 to 870

Pressure Type

  • Absolute
  • Gauge (Relative)

Process Temperature

  • 115° C (239° F) - Max.

Repeatability

  • ≤ ± 0.1 % of Full Scale

Response Time

  • < 4 milliseconds - Liquids with Viscosity < 100 cSt

Seat / Seal Material

  • Seal Behind Thread: NBR

Shock

  • 1 metre Free Fall as Per IEC 60068-2-32
  • 500 G, 1 millisecond as Per IEC 60068-2-27

Span & Zero Effect

  • ≤ ± 0.1 % of Full Scale/10K Typical - Thermal Zero Point Shift & Thermal Sensitivity (Span) Shift
  • ≤ ± 0.2 % of Full Scale/10K, Max.

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Supply Voltage

  • < 0.1 % of Full Scale/10 V - Supply Voltage Dependency
  • 10-30 Vdc - Polarity Protected

Temperature Range

  • -40° to 85° C (-40° to 185° F) - Sensor Temperature Range

Vibration

  • Random Vibration: 7.5 G RMS, 5 to 1,000 Hz as Per IEC 60068-2-64
  • Sinusoidal Vibration: 15.9 mm-pp, 5 to 25 Hz as Per IEC 60068-2-6
  • Sinusoidal Vibration: 20 G, 25 to 2,000 Hz as Per IEC 60068-2-6

Wetted Materials

  • 316 Stainless Steel, 1.4401

  • Industrial Services
