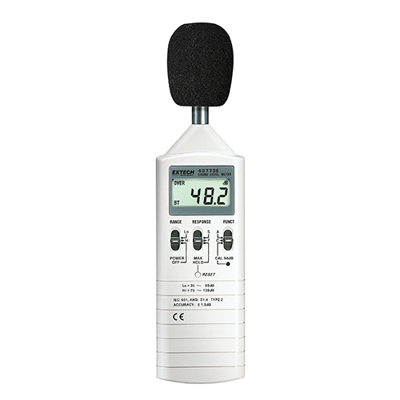

407736 Dual Range Sound Level Meter
Brand: ExtechThis Sound Level Meter measures from 35 to 130dB with a 1.5dB accuracy and meets ANSI and IEC Type 2 standards.
It features fast/slow response time, A/C Weighting, Max Hold, and Analog AC/DC output for connection to an analyzer or recorder.
Comes complete with microphone wind screen, 9-Volt battery, and carrying case.
Features- Provides 1.5dB accuracy.
- Meets ANSI and IEC 651 Type 2 standards.
- Two measuring ranges: 35 to 90dB (Low) and 75 to 130dB (High).
- Max Hold with reset button.
- Built-in calibration check (94dB).
- Analog AC/DC outputs for connection to an analyzer or recorder.
- Tripod mount ideal for field use.
Specifications
Brand
Analog Output
- AC/DC
Basic Accuracy
- ± 1.5 dB (Typical 2)
Condenser Microphone
- 0.5” (12.7 mm)
Dimensions
- 9.5 x 2.7 x 1” (241 x 69 x 25 mm)
Response Time (Fast/Slow)
- Yes
Sound Range (dB)
- Low: 35 to 90 dB, High: 75 to 130 dB
Weight
- 7.6 oz. (215 g)
Weighting (A & C)
- Yes
