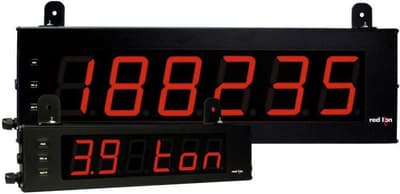

Model LDSS Large Serial Slave Display
Brand: Red Lion ControlsThe Large Serial Slave Display is a versatile display that accepts serial ASCII data from a host device and displays the received characters.
The displayable data includes numeric, 7-segment alphabetic and certain punctuation characters.
The 6-digit displays are available in either 2.25" or 4" high red LED digits with adjustable display intensity.
The 2.25" high models are readable up to 130 feet.
The 4" high models are readable up to 180 feet.
Both versions are constructed of a NEMA 4X/IP65 enclosure in light weight aluminum.
Features- 2.25" or 4" high red LED digits
- Displays upto 6 digits of serial ASCII data
- Dual display buffer allows alternating displays
- RS 232 or RS 485 Serial interface
- Connects directly to red lion products with serial
- Programmable user input
- Universally powered
- Aluminum NEMA 4X/IP65 case construction
Specifications
Brand
Approvals & Certifications
- CE EN 61326-1 Immunity to Industrial Locations
- EMC Emission CISPR 11 Class B
- RoHS
- UL (C,US) File #E137808
Approvals & Certifications
- EN 61010-1 (General Requirements), 61010-2-030 (Particular Requirements for Testing & Measuring Circuits)
Communication
- Baud Rate: 300 to 38,400 bit/sec
- RS-232
- RS-485
Diameter
- Cable: 0.181 to 0.312” (4.6 to 7.9 mm)
Display
- 6-Digit 2.25” (57 mm) or 4” (101 mm) Adjustable Intensity Red LED
Electrical Connectors
- 24 to 12 AWG (0.51 to 2.05 mm) Copper Wire, 90° C Rated Insulation Only
- Internal Removable Terminal Blocks
Enclosure Finish
- Black Polyurethane Paint for Scratch & Corrosion Resistance
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
- IP66
- NEMA 4X
Humidity
- 0 to 85 % Relative Humidity, Non-Condensing
Input
- 28 Vdc, Max.
- Higher Trigger Level: 2.4 V Min.
- Lower Trigger Level: 1 V, Max.
Isolation
- 3,000 VRMS for 1 Minute to All Inputs & Outputs
Length
- Wire Strip Length: 0.4” (10 mm)
Materials of Construction
- Side Panels: Steel
Mounting
- Wall Mounting
Operating Temperature
- 0° to 65° C (32° to 150° F)
Power Requirement
- 21.6-250 Vdc, 11 W
- 50-250 Vac, 50/60 Hz, 26 VA
Resistance
- Input Resistance: 7.8 kiloohms Pull-Up Resistor to 12 V
Response Time
- 10 milliseconds Typical
- 50 milliseconds
Shock
- 30 G to IEC 68-2-27 (10 G Relay)
Storage Temperature
- -40° to 70° C (-40° to 158° F)
Torque
- 0.6 Nm (5.3 In/Lbs)
Vibration
- 2 G at 5 to 150 Hz to IEC 68-2-6 (1 G Relay)
