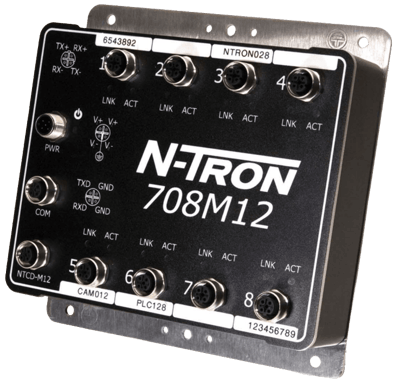

708M12 Industrial Ethernet Switch
Brand: Red Lion ControlsThe N-TRON 708M12 Industrial Ethernet Switch offers outstanding performance and ease of use.
It is a fully managed switch, ideally suited for connecting Ethernet enabled devices in railway, industrial and security applications.
Features- IP67-rated hardened metal enclosure
- Bulkhead mountable (optional DIN-rail mounting)
- Dustproof
- Protection against low/high pressure water jets
- Temporary immersion in water
- Eight 10/100BaseTX M12 D-coded ports
- -40° to 80° C (-40° to 176° F) operating temperature
- ESD and surge protection diodes on all ports
- Auto sensing 10/100BaseTX, duplex and MDIX
- Store and forward technology
- Redundant power inputs (10-30 Vdc)
Specifications
Brand
Applications
- Industrial Applications
- Railways
- Security
Approvals & Certifications
- EN 55011, 61000-4-2,3,4,5,6,8, 11, 61000-6-2,4, 50155 for Railway Applications
Approvals & Certifications
- ABS for Shipboard Applications
- CE
- DNV
- FCC CFR 47, Part 15, Subpart B, Class A, ICES-003- Class A
- GOST-R
- IEEE 1613 for Electric Utility Substations
- RoHS
- UL (C,US) Class I, Div. 2, Grade A, B, C, D & T4A, ANSI/ISA-12.12.01-2007
Circuit Protection
- ESD Protection
- Surge
Communication
- EtherNet/IP
Electrical Connectors
- 10/100Base-TX (8 D-Coded 4-Pin), RS-232 (1 A-Coded 5-Pin), NTCD-M12 (1 A-Coded 5-Pin): M12 Female Ports
- RJ45 Port
Environmental Protection
- IP67
- NEMA TS1
- NEMA TS2
Humidity
- 5 to 100 % Relative Humidity, Non-Condensing
Indication
- LED Link / Activity Status Indication
Input
- 10-30 Vdc
- 250 mA - Max.
Mounting
- DIN Rail Mounting
Operating Temperature
- -40° to 80° C (-40° to 176° F)
Power Supply
- N-Tron: 1.3 A at 24 Vdc
Shock
- 200 G at 10 milliseconds (Bulkhead Mounted)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- 50 G, 5-200 Hz, Triaxial (Bulkhead Mounted)
Wiring
- Wiring Clearance Front: 4” (10.16 cm)
