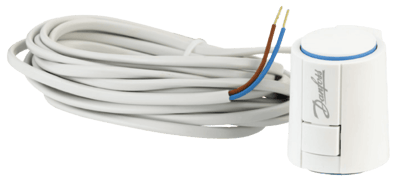

ABN A5 Thermal Actuator
Brand: DanfossThe ABN A5 on/off thermal actuator has been specifically designed for use with AB-QM valves DN10-32 / 1/2" to 1-1/4" in heating and cooling applications.
Features- Stroke 5 mm
- Available as normally closed (NC) or normally open (NO)
- Power consumption 1 / 1.2 W
- Plug-in cable
- Simple snap-on installation
- IP 54 in any installation position
- First-open function
- Compact size, small dimensions
- All round function indicator
- Noiseless and maintenance-free
- Certified by TUV
Specifications
Brand
Adapter
- VA 41
Ambient Temperature Range
- 0° to 60° C (32° to 140° F)
Applications
- Heating & Cooling Applications
Approvals & Certifications
- CE EN 60730
- TÜV
- UL 60730
Cable Length
- 3.28 to 32.8 feet (1 to 10 metres)
Cable Material
- PVC
Class
- Protection Class II - Supply Voltage 230 Vac, 10 to -10 %
- Protection Class III Safety Extra-Low Voltage - Supply Voltage 24 Vac/dc, 20 to -10 %
Current
- Maximum
Electrical Connectors
- Connecting Cable: 2 x 0.75 mm²
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- Polyamid/White RAL9003
Environmental Protection
- IP54
Power
- Operating Power: 1 W (5 mm)
- Operating Power: 1.2 W (6.5 mm)
Storage Temperature
- -25° to 65° C (-13° to 149° F)
Supply Voltage
- 230 Vac, 10 to -10 %, 50/60 Hz
- 24 Vac/dc, 20 to -10 %, 0 to 60 Hz
- Overvoltage Resistance: 2.5 kV Min. (EN 60730-1)
Temperature Range
- Fluid Temperature: 0° to 100° C (32° to 212° F)
Turn-Off Time
- 4 minutes
Turn-On Time
- 4 minutes
