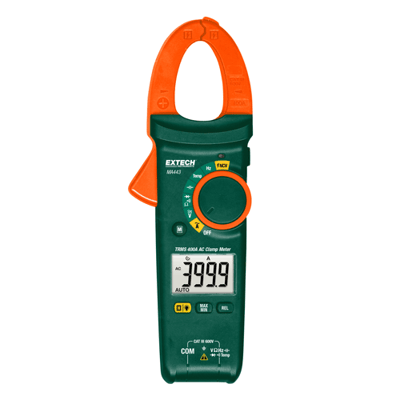

MA443 400A True RMS AC Clamp Meter + NCV
Brand: ExtechThree models to choose from, with or without True RMS and AC or AC/DC Current functions.
Choose True RMS model for accurate readings of non-sinusoidal waveforms, model with DC Current function for automotive applications, or model with Type K function when applications require Temperature measurements.
The MA440 Series meters are fully loaded with multimeter functions and built-in non-contact voltage (NCV) detector to meet your application needs!
Features- True RMS feature for accurate readings regardless of waveforms.
- 1.2" (30 mm) jaw size fits conductors up to 500MCM.
- Built-In Non-Contact Voltage Detector (NCV).
- Large backlit LCD display and built-in Flashlight.
- Functions include: NCV, AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Type-K Temperature, Diode Test, Continuity.
- Relative mode for Capacitance, Data Hold, Max/Min, Auto Power Off and Low Battery Indicator.
- Complete with test leads, three AAA batteries, general-purpose Type K temperature probe and pouch.
Specifications
Brand
AC Current
- 400.0 A (1 mA) True RMS
AC Voltage
- 600 V (1 mV)
Basic Current Accuracy
- AC: ± 1.8 %
Basic Voltrage Accuracy
- AC: ± 1.2 % DC: ± 0.8 %
Capacitance
- 40 MF (0.01 NF)
DC Voltage
- 600 V (0.1 mV) True RMS
Dimensions
- 9 x 3 x 1.6” (228 x 77 x 41 mm)
Diode, Continuity
- Yes
Duty Cycle
- Yes
Frequency
- 1 MHz (0.01 Hz)
Non-Contact Voltage (NCV)
- 100 to 600 V
Resistance
- 40 MΩ (0.1 Ω)
Temperature (Type K - Meter Range)
- -40° to 1832° F / -40° to 1000° C (1°)
Weight
- 9.3 oz. (265 g)
