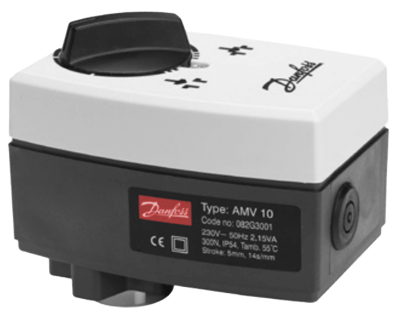

AMV 10/20/30 Three Point Control Actuator
Brand: Danfoss
Actuators without safety function (AMV 10, AMV 20or AMV 30) are mainly used with VS, VM, VB, or AVQM valves.
Safety version is activated automatically in case of power failure or if the power supply is switched off by the safety thermostat.
Actuators automatically adapt stroke to valve end positions which reduces commissioning time.
Features- The advanced design incorporates load related 'switch-off' to ensure that actuators and valves are not exposed to overload
- Digital feedback end position indication signal for valve end position is available by terminal 4 or 5
- Robust design and low weight
- DIN EN 14597 certified safety function
Specifications
Brand
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Approvals & Certifications
- EN 14597
Approvals & Certifications
- CE
- EMC Directive 2004/108/EEC: EN 60730-1, EN 60730-2-14
- Low Voltage Directive (LVD) 73/23/EEC, EN 60730-1, EN 60730-2-14
Class
- Protection Class: Class I (230 V)
- Protection Class: Class II
- Protection Class: Class III (24 V)
Consumption
- Power Consumption: 2 VA for AMV 10 & 20
- Power Consumption: 7 VA for AMV 30
Environmental Protection
- IP54
Frequency
- 50/60 Hz
Humidity
- 5 to 95 % Relative Humidity, No Condensing
Input Signal
- 3-Point
Power Supply
- 230 Vac, 10 to -15 %
- 24 V, 10 to -15 %
Process Temperature
- Maximum
Speed
- AMV 10: 14 sec/mm
- AMV 20: 15 sec/mm
- AMV 30: 3 sec/mm
Storage Temperature
- Transport Temperature: -40° to 70° C (-40° to 158° F)
