Red Lion Dial-Up Ethernet Switch, SLX-5MS-MDM
Images are representations only.

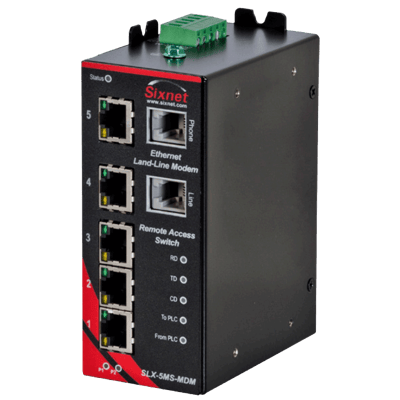

SLX-5MS-MDM Dial-Up Ethernet Switch

Brand: Red Lion Controls
Request Information
Favorite

Red Lion’s Sixnet Series SLX-5MS-MDM managed fast ethernet switch features five Ethernet ports with built-in telephone modem and Modbus monitoring, providing easy and secure remote access over standard telephone lines.

The rugged SLX-5MS-MDM managed switch features 5 10/100Base-T(X) ports and an advanced 56K (V.90) PSTN modem.

Designed to handle harsh environments, the SLX-5MS-MDM switch offers wire-speed throughput, redundant 10-30 Vdc power inputs and a wide -40° to 75° C (-40° to 167° F) operating temperature rating.

Real-Time Ring, Modbus/TCP, PPP and HTTPS ensure reliable and secure operation in industrial applications.
Features
  • 5 Fast Ethernet Ports
    • Five 10/100Base-T(X) copper ports
  • Built-in telephone modem
    • Provides secure remote access via twisted copper telephone wire networks
    • Connection speeds up to 56K
  • Redundant Power Inputs
    • 10-30 Vdc
    • Reverse polarity protection
  • Robust Industrial Design
    • -40° to 75° C ( -40° to 167° F) operating temperature
    • Hardened IP40 enclosure
    • Extended shock and vibration specs
    • Electrical noise and surge immunity
    • LED status indicators
    • Configurable alarm output
    • DIN-Rail or panel mount
    • UL/CSA: Class 1, Division 2
  • Fully Managed Features Include:
    • Web browser or CLI management
    • Secure web (HTTPS/SSL) and Telnet (SSH)
    • Broadcast and multicast storm protection
    • SNMP v1, v2, v3
    • DHCP Server
    • Real-time ring fast-healing ring technology
    • RSTP - 802.1w and 802.1D
    • 802.1p QoS/CoS/DS
    • IGMP multicast filtering
    • SNTP (Simple Network Time Protocol)
    • RMON & port mirroring for advanced diagnostics
    • Modbus/TCP monitoring for port, power and ring status

View Details

Specifications

Brand

Applications

  • Alternative Energy
  • Maritime
  • Oil & Gas
  • Transportation
  • Utilities
  • Water & Wastewater

Approvals & Certifications

  • EN 61000-6-4 (Emissions), 61000-6-2 (Immunity), 60079-0, 60079-15 (Zone 2, Category 3)

Approvals & Certifications

  • ABS for Marine Applications
  • ATEX
  • CE
  • CSA C22.2/142, C22.2/213 (Class I, Div. 2)
  • EMC
  • EMI
  • Ex
  • FCC Part 15, ICES-003
  • IEC 61010-1
  • IEEE 802.3, 802.3 u, 802.3x, 802.1D/w, 802.1p & 802.1Q
  • RoHS
  • UL 508

Electrical Connectors

  • 10/100Base-T: Five (5) RJ45 Ports
  • Configuration Port: One (1) RS-232 (RJ45)
  • Configuration Port: One (1) USB (Mini)

Electrical Protection

  • Reverse Polarity

Environmental Protection

  • IP40

Humidity

  • 5 to 95 % Relative Humidity, Non-Condensing

Indication

  • LED

Input

  • 10-30 Vdc
  • 5 W Typical

Mounting

  • DIN Rail Mounting
  • Panel Mount

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Power

  • Spike Protection: 5,000 W (10 x for 10 μS)
  • Transient Protection: 15,000 W

Power Supply

  • AC to 24 Vdc, 2 A

Shock

  • IEC 61010-1, 60825-1 Class 1

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Vibration

  • IEC 60068-2-6, 2-27

Wiring

  • Wiring Clearance Front, Top: 4” (10.2 cm)
