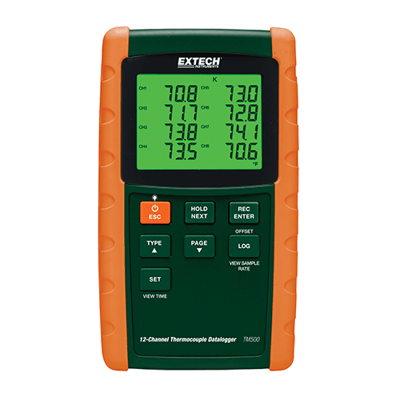

TM500 12-Channel Datalogging Thermometer
Brand: ExtechDatalogging Thermometer with 6 Thermocouple Types (J, K, E, T, R, S).
Features- Simultaneously displays CH1 to CH8 or CH9 to CH12.
- Offset adjustment used for zero function or to make relative measurements.
- Stores 99 readings manually.
- Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format.
- User programmable sampling rate from 1 to 3600 seconds.
- Min/Max, Data Hold, Auto Power Off.
- Complete with 8 AA batteries, 12 general-purpose Type K bead wire temperature probes, SD card, and hard carrying case.
Specifications
Brand
Basic Accuracy
- ± 0.4 % of Reading (+1.8° F / +1° C) Typicals J, K, E, T, ± 0.5 % of Reading (+5° F / +3° C) Typicals R, S
Data Logging
- Datalog Readings on SD Card (Included)
Dimensions, Weight
- 8.9 x 4.9 x 2.5” (225 x 125 x 64 mm) / 2.1 lbs (944 g)
Resolution
- 0.1° / 1°
Type E
- -148 to 1652° F (-100 to 900° C)
Type J
- -148 to 2102° F (-100 to 1150° C)
Type K
- -148 to 2372° F (-100 to 1300° C)
Type R
- 32 to 3092° F (0 to 1700° C)
Type S
- 32 to 2732° F (0 to 1500° C)
Type T
- -148 to 752° F (-100 to 400° C)
