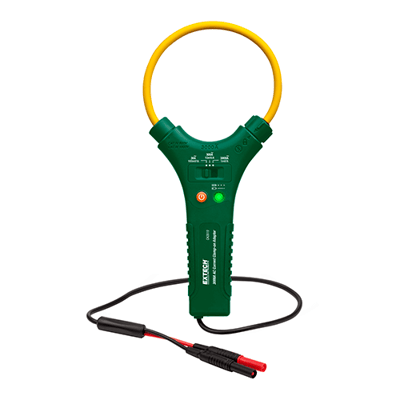

CA3010 3000A AC Flex Clamp-On Adaptor
Brand: Extech10" Flexible Clamp Adaptor for Multimeters/Clamp-On Meters.
Features- Measure AC Current up to 3000A.
- Flexible 10" (25.4 cm) clamp jaw easily wraps around bus bars and cable bundles.
- 7.5 mm cable diameter fits into tight spaces and around large conductors.
- Measures AC Current in three ranges.
- Easy twist clamp cable closure to Lock or Open.
- Compatible with most multimeters and clamp meters with standard sized banana plug inputs.
- Complete with built-in flex clamp cable, 6.6ft (2m) lead with banana plugs, and two AAA batteries.
Specifications
Brand
AC Current
- 30.00 A (100 mV Per Amp Output), 300.0 A (10 mV Per Amp Output), 3000 A (1 mV Per Amp Output)
Basic ACA Accuracy (% Reading)
- ± 3 % of Full Scale (45 to 500 Hz)
Dimensions, Weight
- 11 x 4.7 x 1” (280 x 120 x 25 mm) / 6 oz. (170 g)
Jaw Size, Cable Size
- 10” (25.4 cm) / 18” (45.7 cm)
Maximum Resolution
- 0.01 A
