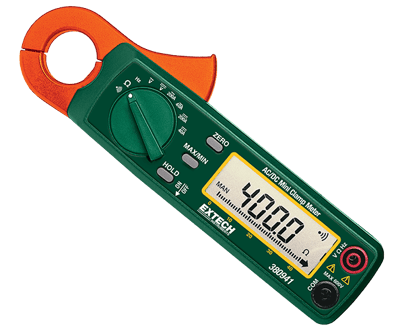

380941 200A AC/DC Mini Clamp Meter
Brand: ExtechHigh resolution mini clamp with Voltage, Frequency, and Resistance.
Features- 0.9" (23 mm) jaw opening.
- High resolution to 10mA AC/DC.
- Voltage, Resistance, and Frequency.
- Fast 40 segment bar graph.
- One touch Auto Zero for DC Current measurements.
- Min/Max, Data hold and Auto power off.
- To download the correct user's manual, please check your product's serial number (on the back of the unit). A product revision has occurred only if the SN begins with a letter (A, B, etc.).
Specifications
Brand
AC Current
- 40 A, 200 A
AC Voltage (Maximum Resolution)
- 400 V (0.1 V)
Basic ACA Accuracy (% Reading)
- ± 1.0 %
Data Hold
- Yes
DC Current
- 40 A, 200 A
DC Voltage (Maximum Resolution)
- 400 V (0.1 V)
Dimensions, Weight
- 7 x 1.75 x 1.25” (178 x 45 x 32 mm) / 8 oz. (225 g)
Diode, Continuity
- Continuity
Display Counts
- 4000 Count LCD
Frequency (Maximum Resolution)
- 100 kHz (0.001 Hz)
Jaw Size, Cable Size
- 0.9” (23 mm), 4/0 AWG
Maximum Resolution
- 0.01 A AC/DC
Minimum/Maximum
- Yes
Resistance (Maximum Resolution)
- 400 Ω (0.1 Ω)
