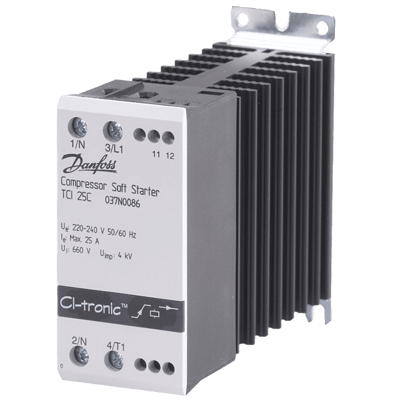

TCI 25C CI-Tronic Torque Limiter
Brand: DanfossThe TCI 25C soft starter is designed for soft starting of single-phase compressors.
During start the TCI 25C will gradually ramp-up the motor voltage to full line voltage thus reducing the starting current peak.
Features- Easy installation between normal motor starter and motor
- LED status indication
- Unlimited start/stop operation per hour
- DIN rail mountable
- Starting time max. 0.5 second
- Suitable for 50/60 Hz
- EN 60947-4-2
- CE, EAC, LLC CDC TYSK
Specifications
Brand
Ambient Temperature Range
- 50° to 60° C (122° to 140° F)
Approvals & Certifications
- CE
- EMC: Immunity (EN 60947-4-2)
- LLC CDC TYSK
Current
- 15 A - Continuous Current
- 23 A - Continuous Current
- 25 A - Max.
Display
- LED Display
Dissipation
- 1 W/A - Continuously Duty & Intermittent Duty
Enclosure, Body Material
- Self Extinguishing Polyphenylene Oxide UL 94V1
Frequency
- 50/60 Hz
Materials of Construction
- Aluminum Black Anodised - Heat Sink
- Electro-Plated Steel - Base
Motor Power
- 4 kW at 5.5 hp
Mounting
- DIN Rail Mounting
- Horizontal or Vertical
Operating Temperature
- -5° to 40° C (23° to 104° F)
Operating Time
- Ramp-Up Time: Max.
Supply Voltage
- 220-240 Vac - Line Voltage & Operational Voltage
- 4 kV - Rated Impulse Withstand Voltage
- 660 V - Rated Insulation Voltage
