Red Lion Large DC Volt/Current/Process Display, Model LDA
Images are representations only.

Model LDA Large DC Volt/Current/Process Disp

Brand: Red Lion Controls
Request Information
Favorite

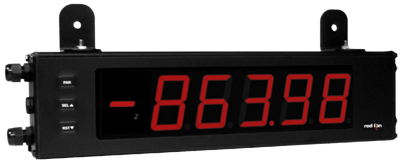

The Large Display is a versatile display available as a DC volt, current or process meter with scaling, serial communications and dual relay outputs.

The 5 digit displays are available in either 2.25" or 4" high red LED digits with adjustable display intensities.

The 2.25" high models are readable up to 130 feet.

The 4" high models are readable up to 180 feet.

Both versions are constructed of a NEMA 4X/IP65 enclosure in light weight aluminum.

All models also come with dual Form C relay outputs and RS232 / RS485 serial communications.
Features
  • 2.25" & 4" high red LED digits
  • Programmable scaling and decimal points
  • Programmable user input
  • Dual 5 Amp Form C relay
  • Aluminum NEMA 4X/IP65 case construction
  • RS232/RS485 serial communications
  • Universally powered

View Details

Specifications

Brand

Accuracy

  • 0.1 % of Span

Approvals & Certifications

  • CE
  • EMC
  • RoHS
  • UL (C,US)

Communication

  • Baud Rate: 300 to 38,400 bit/sec
  • RS-232
  • RS-485

Diameter

  • Cable: 0.18” to 0.31” (4.6 to 7.9 mm)

Electrical Connectors

  • 24 to 12 AWG

Enclosure Finish

  • Black Polyurethane Paint for Scratch

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Input

  • 0-10 Vdc
  • 1-5 Vdc
  • 2.4 V, Min.
  • 200 µΑ
  • 200 mV
  • 2-200 mA
  • 2-200 V
  • 250 Vdc for 10 V, 20 V, 200 V
  • 28 Vdc
  • 4-20 mA
  • 75 Vdc for 200 mV, 2 V

Input Impedance

  • 1 ohm for 200 mA
  • 1.033 megaohms
  • 1.111 kiloohms for 200 µΑ
  • 11 ohms for 20 mA
  • 111 ohms at 2 mA

Isolation

  • 1,500 Vrms
  • 3,000 Vrms
  • 500 Vrms

Length

  • Display: 2.25” (57.15 mm)
  • Display: 4” (101.6 mm)
  • Wire Strip: 0.4” (10 mm)

Operating Temperature

  • 0° to 65° C (32° to 150° F)

Operating Voltages

  • 150 Vrms
  • 50 V

Power Requirement

  • 100 mA at 24 Vdc
  • 11 W
  • 21.6-250 Vdc
  • 26 VA
  • 50 mA at 24 Vdc
  • 50-250 Vac, 50/60 Hz

Resolution

  • 0.1 µA for 2 mA
  • 0.1 mV for 2 V
  • 1 µA for 20 mA
  • 1 mV for 10 V, 20 V
  • 1 mV for 200 V
  • 10 µA for 200 mA
  • 10 µV for 200 mV
  • 10 NA for 200 µΑ
  • 16-bits

Response Time

  • 4 milliseconds
  • 5 milliseconds
  • 50 milliseconds
  • 500 milliseconds

Shock

  • 30 G for IEC 68-2-27

Storage Temperature

  • -40° to 70° C (-40° to 158° F)

Temperature Coefficient

  • 70 ppm/°C

Torque

  • 0.6 Nm (5.31 In/Lbs)

Vibration

  • 2 G for IEC 68-2-6
  • 5 to 150 Hz for IEC 68-2-6

Documentation

Data Sheets
