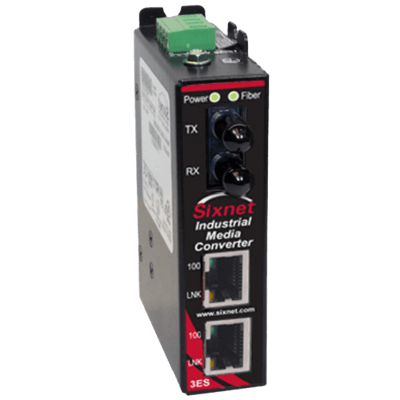

SLX-3ES Industrial Ethernet Media Converter
Brand: Red Lion Controls
The SLX-3ES is an Ethernet copper to fiber media converter that provides fast performance allowing for real-time operation in industrial networking applications.
These ruggedized converters are industrial hardened to provide superior reliability.
They require no user setup and immediately start operating as soon as they’re powered up.
Features- 2 fast Ethernet (10/100) ports
- 1 fiber optic (10/100 base FX) port for distances up to 120 km
- Slim DIN-Rail packaging
- High performance and reliability
- Industrial-hardened design
Specifications
Brand
Applications
- Maritime
- Mining
- Oil & Gas
- Transportation
- Video & Security
Approvals & Certifications
- EN 61010-1, 610006-2,4, 60079-15 (Zone 2, Category 3)
Approvals & Certifications
- ABS for Marine, Maritime & Offshore
- ATEX
- CE
- CSA C22.2/14, C22.2/213 (Class I, Div. 2)
- EMC
- FCC Part 15, ICES-003
- IEEE 802.3, 802.3 u, 802.3x, 802.1D/w, 802.1p, 802.1Q
- RoHS
- UL 508, 1604
- WEEE
Bandwidth
- Memory Bandwidth: 3.2 Gbps
Connectors
- ST or SC Fiber Optic Connector
Electrical Connectors
- Two (2) RJ45 Copper Port
Electrical Protection
- Reverse Polarity
Environmental Protection
- IP40
- NEMA TS2
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing
Input
- 10-30 Vdc
- Power Consumption: 3 W
- Spike Protection: 5,000 W (10 x for 10 μS)
- Transient Protection: 15,000 W Peak
Isolation
- Ethernet: 1,500 Vrms 1 Minute
Materials of Construction
- Corrosion Resistant Aluminum
Mounting
- DIN Rail Mounting
- Direct Panel Mounting
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Shock
- IEC 60068-2-6
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- IEC 60068-2-27
