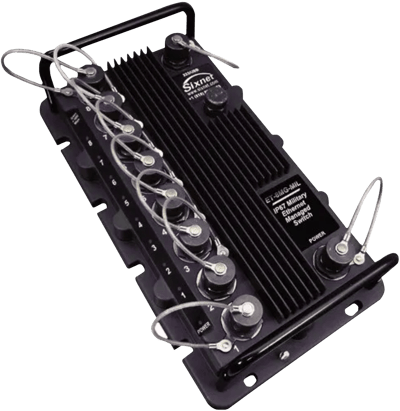

Sixnet® ET IP67 Industrial Ethernet Switches
Brand: Red Lion ControlsThese high-performance switches offer an ideal Commercial Off-The-Shelf (COTS) military solution for battlefield communications, combat vehicles and avionics shipboard as well as other industrial applications that require rugged reliability in extreme environments.
MILITARY STRENGTH
With military equipment subject to harsh climates, varying temperatures, shock and vibration, defense requirements are mission critical. Equipment has to be built to withstand extreme stresses without sacrificing performance. Sixnet’s IP67 Ethernet switches are designed to reliably provide high-performance connectivity for the harshest defense applications.
Military rated to support extreme defense conditions, our products link in-vehicle communication systems to support a host of military applications on the land, in the air and on sea. These include land vehicles, ground support facilities, missile delivery systems, bombers, aircraft, UAVs and naval vessels.
Ultra Rugged & Compact
- Meets extreme military standards
- Provides proven reliability under field conditions
- Fully certified MIL-STD performance
- 40 to 75° C operating temperature
- Tough corrosion proof aluminum case
- Conductive cooling
- No moving parts
- Over 1,000,000 (MTBF) of trouble-free service
Industrial COTS Solution
- Reduces time and cost for development and maintenance
- Simplifies procurement
- Pre-tested for vibration and harsh conditions
- Ready to ship
Flexible Deployment Options
- Reduces crew workload
- Improves task performance
- Direct-mounting
- No need for additional enclosures and wiring
- IP67 (NEMA 6) water-tight case enables mounting into a vehicle or an exposed wall in harsh applications
- Low-profile chassis fits into tight spaces
Real-Time Ethernet Performance
- Helps optimize vehicle networks
- Protects mission-critical communications
- Fast wire-speed switching
- Auto-speed/duplex, auto-crossover and auto-polarity
- RSTP, SNMP, QoS/CoS, IGNR, VLAN and security options
- 8 Gigabit Ethernet ports for 10/100/1000 Mbps links
- IP67/NEMA 6 rated package protects against dust, water, oil, and debris
- High-performance switch rated for MIL-STD-810F, MIL-STD-461F and MIL-STD-1275D
- Military-rated MIL-DTL-38999 Series III connectors protect against vibration, shock and water
- Tough corrosion-proof aluminum enclosure
- Truly industrial -40 to +75° C operating range with conductive cooling
Specifications
Brand
Ethernet Performance
- 8 Gigabit Ethernet Ports for 10/100/1000 Mbps links
- Store and forward wire-speed Non-blocking switching
- Managed or unmanaged models available
- All IEEE 802.3 Ethernet Protocols supported
- Auto-negotiation for Ethernet speed and duplex
- Auto-Crossover for Ethernet MDI/MDIX wiring
- Auto-Polarity for Ethernet TD and RD polarity
- Full or half-duplex Operation (Auto or configurable)
- 8192 MAC addresses supported
- 32 Gbps memory bandwidth
- Ethernet isolation 1500 VRMS 1 minute
- Connector: MIL-DTL-38999 Series III receptacle with shell/insert style 9-9, 8 socket Contacts & N keying
Ethernet Compliance
- IEEE 802.3 (Original Ethernet 10 Mbps)
- IEEE 802.3z (Gigabit Ethernet 1000 Mbps)
- IEEE 802.3x (Full-duplex with flow Control)
- IEEE 802.3u (Fast Ethernet 100 Mbps)
Power Input
- Connector: MIL-STD-38999 Series III receptacle with shell size A, style 98, 3 pin Contacts and A keying
- Input Voltage Range: 18-30 Vdc (Continuous)
- Input Power: 17 W (Max. under full load)
- Reverse polarity Protection
- Exceeds MIL-STD-1275 for Power Protection
- Surge Protection: 100 volts for 1 second
- Transient Protection: 15,000 watts peak
- Spike Protection: 5,000 watts (10x for 10 µS) or 250 volts (50x for 100 µS)
Environmental
- Vent plug for high-Altitude Operation
- Vibration, shock and freefall per MIL-STD-810F and IEC 60068-2-6, -27 and -32
- Humidity (Non-Condensing) 5 to 95 % Relative Humidity
- Storage Temperature: -40 to +85° C
- Operating Temperature: -40 to +75° C (Cold Startup at -40° C)
Physical
- Dimensions (L x W x H): 11 x 6 x 2.85” (279 x 152 x 72 mm)
- Weight (Including caps): 4.25 lbs (1.9 kg)
- IP67 dust, oil and water-tight package Protection
Standards & Compliance
- UL 508/CSA C22.2/14 for Electrical safety
- UL 1604/CSA C22.2/213 for hazardous locations
- MIL-STD-461F for EMC performance
- MIL-STD-810F for environmental performance
- MIL-STD-1275D for Power Protection
- MTBF per MIL-HNDBK-217F2
- 8EG: > 1MM hours GB or 176,157 GM @ 40° C
- 8MG: > 1MM hours GB or 142,787 GM @ 40° C
Managed Models
- USB/RS-232 console Port via MIL-STD-38999 Series III Connector with shell size A, style 35, 6 socket Contacts & A keying
- Real-Time Ring™ or Rapid Spanning Tree (RSTP) for fast redundant Ring or mesh networks
- Priority queuing for Real-time performance
- SNMP v1 and v2 for network management
- SNMP v3 for authentication and encryption
- SNMP notifications (Traps) for report on event
- IGMP v1 & v2 for IP multicast filtering
- VLAN (Port & tag based) for traffic segregation
- Message filtering to stop broadcast/multicast storms
- RMON and Port mirroring for diagnostics
- Configuration via secure (HTTPS) web interface, Telnet/SSH (network), terminal (RS-232) or SNMP (v1, v2, v3)
Recommended Interface Plugs
- Ethernet Plug: Aero AE90-365-BN9-9PN or Amphenol TV06RW9-9PN (without center pin)
- Power Plug: D38999/26WA98SA
- USB/RS-232 Plug: D38999/26WA35PA
- Industrial Outdoors
- Marine and Maritime
- Transportation
- Military In-Vehicle (per COTS)
- Aerospace
