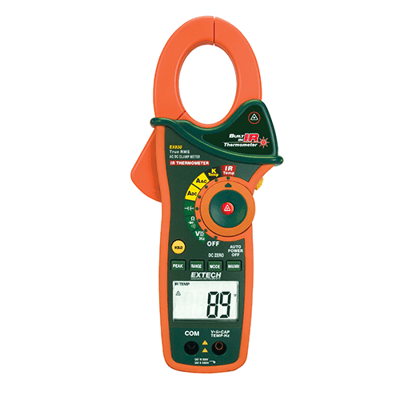

EX830 1000A True RMS AC/DC Clamp Meter with IR Thermometer
Brand: ExtechThe EX830 clamp meter features a unique, built-in, non-contact Infrared thermometer with laser pointer to monitor temperature and locate hot spots on motors and electrical devices.
A large 4000 count LCD display with bright back lighting allows you to see the reading in dim light.
The ergonomically designed double-molded housing offers a better grip for one-hand operation. The 1.7 Ft. (43 mm) diameter jaw opening is large enough for conductors up to 750MCM.
In addition to AC/DC current, it measures AC/DC voltage, resistance, temperature, capacitance, and frequency.
It features: diode test, audible continuity beeper, min/max, data hold, auto power off, and a fast peak hold that captures inrush currents and transients.
Comes complete with test leads, 9V battery, type K bead wire temperature probe (-4 to 482°F/-20 to 250°C) and a belt holster.
Features- Non-contact InfraRed Temperature measurements with laser pointer.
- True RMS Current and Voltage measurements.
- Peak hold captures inrush currents and Transients.
- MultiMeter functions include AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Diode, Continuity and Type K Thermometer.
- 1.7" (43 mm) jaw opening for conductors up to 750MCM or two 500MCM.
- 4000 count backlit display.
- Autoranging with manual range button.
- Features include Data Hold and Min/Max, DC Zero, Auto Power off.
- Complete with test leads, 9V battery, general-purpose Type K probe and case.
