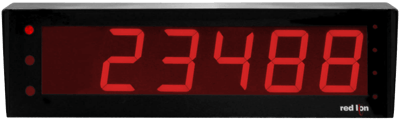

Model EPAX 5-Digit Display
Brand: Red Lion ControlsThe EPAX is a versatile display that can increase productivity by offering the plant floor or production area a large visual display of their current status.
Whether your measurement is voltage, current, process, temperature, or strain gage, the EPAX can satisfy your requirement.
The EPAX accepts various Analog inputs through the use of input modules (MPAX) which allow the unit to adapt to most any application.
The MPAX Modules offer the same features as our highly successful PAX Series Panel Meters.
Additional plug-in option cards can add alarms, Analog output, and communication/bus capabilities, making the EPAX a truly Intelligent Panel Meter.
Features- Large LED display readable to 180 feet
- Various Analog input modules
- DC voltage and current
- Process signals
- True RMS voltage and current
- Thermocouple or RTD
- Strain gauge/bridge
- Alarms, Analog output and communication
- Programmable user inputs
- Universal AC power (85-250 Vac)
- Crimson programming software
- NEMA 4X/IP65
Specifications
Brand
Approvals & Certifications
- CE
- EMC
- IEC 61010-1, IEC 529
- UL 61010A-1, CSA C22.2 No. 1010-1, UL 508, CSA C22.2 No. 14-M95, UL 50
Approvals & Certifications
- EN 61010-1
Communication
- Modbus
- PROFIBUS DP
- RS-232
- RS-485
Diameter
- Panel Thickness: 0.060” (1.57 mm) Min.
- Panel Thickness: 0.375” (9.5 mm) - Max.
Electrical Connectors
- Wire Gage: 30 to 12 AWG
Enclosure Finish
- Polyurethane Paint
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
- IP66
- NEMA 4
- NEMA 4X
Humidity
- 0 to 85 % Relative Humidity, Non-Condensing
Length
- Display: 4” (101.6 mm)
- Wire Strip: 0.3” (7.62 mm)
Materials of Construction
- Front Panel: Aluminum
Mounting
- Panel Mount
Output
- 0-10 V
- 0-20 mA
- 4-20 mA
Power Requirement
- AC mPaX Modules, EPAX Display: 18 VA
- AC mPaX Modules, EPAX Display: 85-250 Vac,50/60 Hz
- EPAX Display: 10 VA
Storage Temperature
- -40° to 60° C (-40° to 140° F)
Torque
- 0.58 to 0.81 Nm
