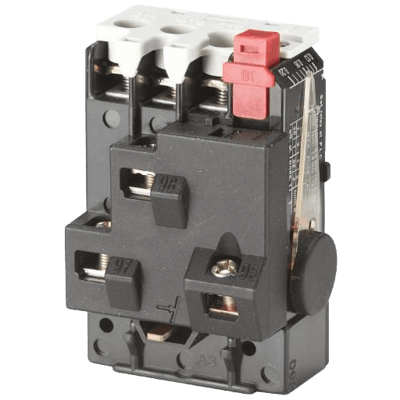

TI 9C-5 Thermal Overload Relay
Brand: DanfossThermal overload relay TI 9C-5 is used with minicontactor CI 5 – for protection of squirrel cage motors where compactness is required.
The relay have single-phase protection, i.e. accelerated release if phase drop-out occurs. This is particularly important for motors with delta connected windings.
Features- Stop/ reset button
- Manual/automatic reset
- Test button
- Double scale for direct start or Y/D start
- Galvanically isolated signal contact
Specifications
Brand
Ambient Temperature Range
- -50° to 60° C (-58° to 140° F)
Approvals & Certifications
- CE: IEC/EN 60947-1, -4-1, -5-1, -5-4
- CSA
- cULus Standards 508, CSA C22.2 No. 14 M91
Compensated Temperature
- -5° to 40° C (23° to 104° F)
Current
- Motor Starter: 0.13 to 12 A
- Y/D Start Motor: 3.2 to 20.8 A
Electrical Rating
- Maximum
Operation
- Maximum
Power
- 2.15-4.87 W Typically
- 4 KW
Shock
- 9 G, 7.5 milliseconds
Torque
- 0.8 to 2 Nm
Vibration
- 2 G at 200 Hz
