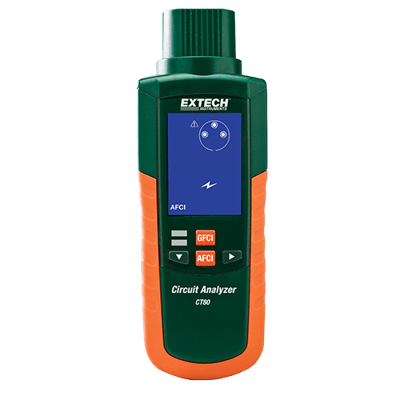

CT80 AFCI, GFCI & AC Circuit Analyzer
Brand: ExtechCircuit and wiring issues can introduce shock hazards (from grounding issues) and can compromise performance of machinery and equipment (from poor ground impedance, lack of sufficient voltage under load and/or high ground-to-neutral voltage).
The CT80 is a GFCI and AC Circuit Analyzer which covers outlet load handling and outlet tester functions.
Complete with AC test cord (standard North American 3-prong plug).
Features- Outlet Tester functions:
- AFCI.
- GFCI Trip Current.
- GFCI Trip Time.
- EPD Trip Current.
- Neutral to Ground Voltage.
- Hot, Neutral and Ground Impedance.
- Open or Reversed wiring.
- AC Load Tester:
- Selectable loads of 12, 15 and 20 Amps.
- Measures loaded and unloaded AC Line Voltage.
- Calculates and displays % Voltage Drop and Line Impedance.
- Displays Peak Line Voltage and Frequency.
- Over-Temperature protection.
- Complete with AC test cord (standard North American 3-prong plug).
Specifications
Brand
% Voltage Drop
- 0.1 to 99.9 %
AC Voltage
- 85.0 to 250.0 V
Dimensions
- 8 x 2.8 x 2” (203.2 x 71.1 x 50.8 mm)
Frequency
- 45.0 to 65.0 Hz
Peak Line Voltage
- 350.0 V
Weight
- 11.2 oz. (317.5 g)
