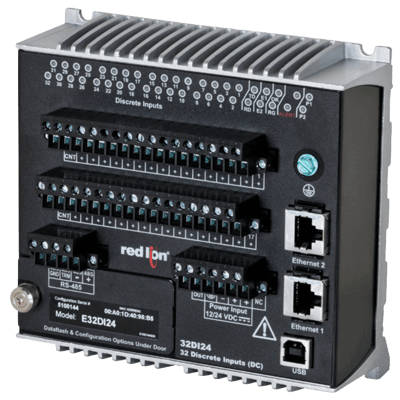

E3 I/O Rugged High-Density Module

Brand: Red Lion Controls

Red Lion's E3 I/O Modules provide a robust and reliable platform for local and distributed monitoring and control of processes and equipment in harsh industrial environments.

The highly rugged E3 I/O modules feature discrete, Analog and temperature I/O, dual Ethernet ports, an RS-485 serial port and one USB port.
Features
  • Wide Variety of I/O Configurations
    • 17 models with various discrete, Analog and temperature I/O
  • Powerful Networking Capabilities
    • Built-in two port Ethernet switch for daisy chaining, redundancy, or pass-through
    • Modbus protocol support for industrial monitoring and communications
  • Built-in Security for Proactively Blocking Unwanted Access
  • RS-485 Port for Connecting Serial Devices to Ethernet Network
  • Industrial Design Supporting Deployment in Extreme Environments
    • Hardened metal enclosure with both DIN-rail and panel mount options
    • Wide -40° to 75° C operating temperature range
    • UL/cUL Class 1, Division 2 Listed
  • Configured via Crimson software for easy point-and-click configuration or through built-in web interface

Specifications

Brand

Accuracy

  • ± 0.02 % at 20° C (68° F)
  • ± 0.5° C (± 0.9° F)

Applications

  • Mining
  • Oil & Gas Applications
  • Power & Energy
  • Transportation
  • Water & Wastewater

Approvals & Certifications

  • ANSI / ISA 12.12.01-2013 Edition (Class I, Div. 2, Groups A, B, C, D)
  • CE (EN 61000-4-2, 3, 4, 5, 6, 8)
  • CPT
  • CSA C22.2/213, CSA C22.2/142
  • EMC
  • EMI Emissions: FCC Part 15, ICES-003, Class A
  • EN -55022, EN 6100-6-4, EN 61000-6-2
  • FCC
  • RoHS
  • UL (C,US), Class I, Div. 2, Listed, UL 508, UL 94V-0

Communication

  • ARP
  • Baud Rate: 300 to 57,600
  • DHCP
  • HTTP
  • ICMP
  • Modbus ASCII/RTU
  • Modbus TCP/UDP
  • RS-485
  • TCP/IP Protocols
  • UDP

Electrical Connectors

  • RJ45 Port

Humidity

  • 10 % to 95 % RH, Non-Condensing

Input

  • 0-10 Vdc
  • 10-30 Vdc
  • 12-24 Vdc
  • 250 mV
  • 4-20 mA
  • 60-140 Vac
  • Average: 190 mA at 24 Vdc
  • Inrush Current: 5 A at 24 Vdc
  • Maximum
  • Minimum: 150 mA at 24 Vdc

Input Impedance

  • 10 kΩ
  • 100 ohms
  • 200 kΩ

Load

  • 0 to 750 ohms

Mounting

  • DIN Rail
  • Panel Mount

Operating Temperature

  • -40° to 75° C (-40° to 166° F)

Output

  • 10-30 Vdc
  • 4-20 mA
  • 5 A

Resolution

  • 10-bits
  • 16-bits
  • Input Resolution: 150 V

Response Time

  • 1 ms

Scan Time

  • 1 ms

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Temperature Coefficient

  • Span & Offset Temperature: ± 50 ppm/°C

Update Time

  • 880 to 1 ms
