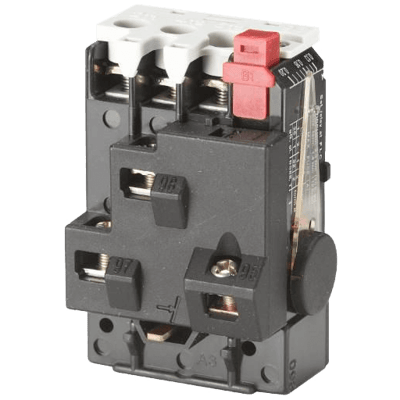

TI 9 C Thermal Overload Relay
Brand: DanfossThermal overload relays TI 9C are used with minicontactors CI 4 for class 10 protection of squirrel cage motors where space is a premium.
The relays have single-phase protection, i.e. accelerated release if phase drop-out occurs. This is particularly important for motors with delta connected windings.
Features- Stop/Reset button
- Manual/Automatic reset
- Test button
- Double scale for direct start or Y/D start
- Signal contact with change over or galvanically isolated
Specifications
Brand
Ambient Temperature Range
- -50° to 60° C (-58° to 140° F)
Applications
- Trippers
Approvals & Certifications
- IEC 947-4
- EN 60947-4
Compensated Temperature
- -5° to 40° C (23° to 104° F)
Connection Style
- Clamped Washer
- Screw
Current
- 3 A - Fuse
Electrical Connectors
- 18 to 12 AWG
Electrical Rating
- 2 A at 250 V, 20 W - (DC-13 Load)
- 2 A at 500 V, 200 VA - (AC-15 Load)
Function
- Reset
- Stop
Isolation
- Signal Contact - Galvanically Isolated
Operation
- 30 - Max.
Power
- Power Loss: 2.15-4.87 W Typically
Shock
- 9 G, 7.5 milliseconds - Perpendicular to Contact System
Tightening Torque
- 7.2 to 18 in/lbs (0.6 to 1.5 ft-Pounds)
Vibration
- 2 G at 200 Hz
- Trippers
