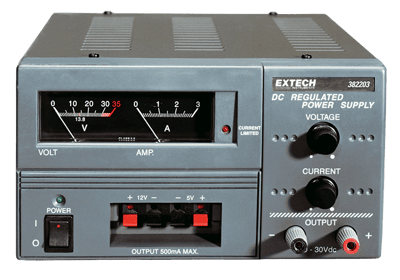

382203 Analog Triple Output DC Power Supply
Brand: ExtechAdjustable to 30V/3A with fixed 5V and 12V outputs.
Features- Adjustable Voltage and Current output.
- Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs.
- Constant Voltage or Current.
- Current limiting indicator.
- Overload and short circuit protection.
- Binding post terminals for variable supply.
Specifications
Brand
Current Output, DC
- 0 to 3 Amps
Dimensions
- 6 x 5.6 x 9.5” (152 x 142 x 242)
Display
- 382203 - Analog or 382213 - Digital (V&A),3-Digit 0.1 Res. LCD
Fixed Output Voltage
- 5 V / 0.5 A (Cont.), 1 A(Max.), 12 V / 0.5 A (Cont.), 1 A(Max.)
Line Regulation
- < 0.05 % + 10 mV
Load Regulation
- < 0.05 % + 10 mV
Power
- 110/220 Vac 50/60 Hz
Ripple & Noise
- < 5 mV
Voltage Output, DC
- 0 to 30 Volts
Weight
- 11 lbs (5 kg)
