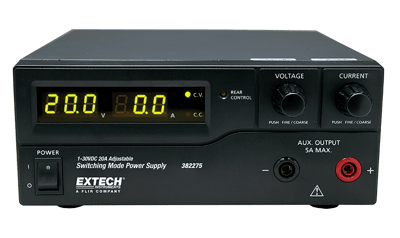

382275 600W Switching Mode DC Power Supply for 120V
Brand: ExtechLaboratory Grade Power Supply with 30V/20A Max output.
Features- Remote Control for output Voltage/Current and On/Off.
- Two user-defined Voltage and Current presets and one 13.8V/20A factory preset.
- Automatic Constant Current crossover.
- Dual 3-Digit LED displays.
- High RFI immunity and excellent EMI.
- Thermostatic Control Fan from zero to full speed.
- Overload, over-temperature, and short circuit protection.
Specifications
Brand
Basic Accuracy
- ± (0.5 % + 2-Digits)
Dimensions
- 7.9 x 3.5 x 8.5” (200 x 90 x 215 mm)
Line Current Regulation
- 50 mA Min
Line Voltage Regulation
- 20 mV
Load Current Regulation
- 100 mA Min
Load Voltage Regulation
- 50 mV
Output Current (Res.)
- 1 to 20 A (100 mA)
Output Voltage (Res.)
- 1 to 30 V (100 mV)
Power
- 120 Vac, 50 Hz/60 Hz
Ripple & Noise
- < 5 mVrms
Weight
- 5.7 lbs (2.6 kg)
