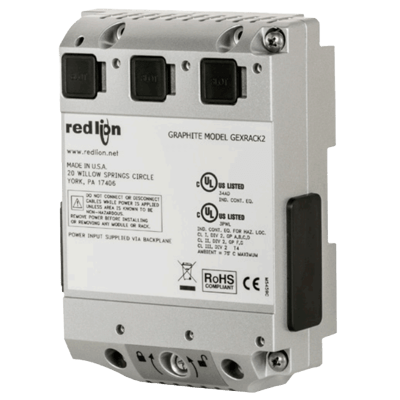

Graphite Expansion Rack
Brand: Red Lion Controls
Easily panel mount the I/O and communication capabilities of Red Lion’s Graphite platform using rugged USB modular expansion racks.
Rugged Graphite expansion racks allow for easy back-of-cabinet mounting and support for additional plug-in modules without extensive wiring.
These expansion racks work with the Graphite platform to provide a scalable solution that enables organizations to connect, monitor and control more industrial processes.
Features- Remote Module Mounting
- Easy back-of-cabinet installation
- Minimizes I/O cabling to cabinet door
- Extend Graphite Platform Capabilities
- Support for additional plug-in modules
- Rugged Environmental Specifications
- Wide -40° to 75° C operating temperature
- High shock and vibration tolerance
- CE, UL/cUL and UL/cUL Hazardous approvals
- Multiple Models Available
- Wide expansion rack includes USB host and power for connected modules
- Filtered power supply for module and Graphite platform
- 3 module slots per rack
- Standard expansion rack mates to wide rack - 3 module slots per rack
- Mounting options include DIN rail or direct mount
- Wide expansion rack includes USB host and power for connected modules
Specifications
Brand
Applications
- Data Acquisition
- Factory Automation
- Industrial Internet of Things (IIoT)
- Oil & Gas Applications
- Plastic Extrusion
- Power & Utilities
- Water & Wastewater
Approvals & Certifications
- EN 61010-1, 61326-1
Approvals & Certifications
- CE
- CEC
- IEC 60950-1, 61010-1
- NEC
- RoHS
- UL (C,US)
Humidity
- 0 to 80 % Non-Condensing
Input
- 9-32 Vdc
Length
- Strip: 0.3” (7.62 mm)
Mounting
- DIN Rail 1010, 1065, 3065
- Direct Mounting
- Panel
Operating Temperature
- -40° to 75° C (-40° to 166° F)
Power Requirement
- 13 W Per Rack, 52 W Total
Shock
- DIN Rail Mount: 15 G at IEC 68-2-27
- Panel Mount: 40 G at IEC 68-2-27
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- DIN Rail Mount: 2 G at IEC 68-2-6
- Panel Mount: 4 G at IEC 68-2-6
- Panel, DIN Rail Mount: 5 to 500 Hz at IEC 68-2-6
