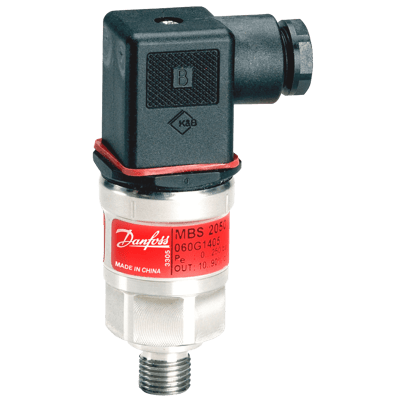

MBS 2000/MBS 2050 Pressure Transmitter
Brand: DanfossThe compact heavy duty pressure transmitters MBS 2000 and MBS 2050 are designed for use in hydraulic applications.
MBS 2050 with integrated pulse-snubber is designed for use in applications with severe medium influences like cavitation, liquid hammer or pressure peaks. Both types offer a reliable pressure measurement, even under harsh environmental conditions.
The flexible program of pressure transmitters with ratiometric output signal covers absolute or gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections.
A robust design, an excellent vibration stability and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
Features- Designed for use in severe industrial environments
- Protected against cavitation, liquid hammering and pressure peaks (MBS 2050)
- Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
- Pressure ranges in relative (gauge) or absolute upto 600 bar
- Ratiometric output signal: 10% to 90% of supply voltage
- A wide range of pressure and electrical connections
- Temperature compensated and laser calibrated
- For use in Zone 2 explosive atmospheres
Specifications
Brand
Accuracy
- ≤ ± 0.5 % of Full Scale - Typical Includes Non-Linearity, Hysteresis & Repeatability
- ≤ ± 1 % of Full Scale, Max.
Ambient Temperature Range
- -40° to 125° C (-40° to 257° F)
Applications
- Cavitation, Liquid Hammer or Pressure Peaks - MBS 2050
- Hydraulic Applications
- Severe Industrial Environments
Approvals & Certifications
- ATEX Zone 2 II 3 G, Ex NA IIA T3 Gc -20° C < Ta < 85° C
- CE
- EMC: EN 61000-6-3 (Emission), EN 61000-6-2 (Immunity)
- EN 60079-0
- EN 60079-15
BSP Connection
- G 1/2” A Male (EN 837)
- G 1/4” Male (DIN 3852-E)
Burst Pressure
- 6 x Full Scale [psi: 29,010 (MPa: 200, bar: 2,000) - Max.
Cable Length
- 6.56 feet (2 metres) - Screened Cable
Cable Material
- Polyethylene (PE) - Shrinkage Tubing
- Polyolefin
- PTFE - Wire
Compensated Temperature
- 0° to 80° C (32° to 175° F)
Consumption
- ≤ 5 mA at 5 Vdc
Electrical Connectors
- AMP Econoseal, J Series, Male, Excluding Female Plug
- AMP Superseal 1.5 Series Male, Excluding Female Plug
- Bayonet Plug as Per ISO 15170-A1-3.2-SN
- M12 x 1 Male, 4-Pin, Excluding Female Plug as Per EN 60947-5-2
- PG11 as Per EN 175301-803-A
- PG9 as Per EN 175301-803-A
- Screened Cable
Electrical Protection
- Polarity
Enclosure, Body Material
- 316L Stainless Steel - EN 10088-1
Environmental Protection
- IP65
- IP67
- IP68
- IP69K
Gasket Material
- NBR (DIN 3869-14)
Hysteresis
- ≤ ± 0.1 % of Full Scale
Insulation Resistance
- > 100 megaohms at 100 Vdc
Load Resistance
- ≥ 10 kiloohms at 5 Vdc
Materials of Construction
- Plug: Glass-Filled Polyamid
- Plug: Glass-Filled Polyester PBT
- Plug: Nickel-Plated Brass
Metric Connection
- M18 x 1.5 Male
Non-Linearity
- ≤ ± 0.2 % of Full Scale
NPT Connection
- 1/4” NPT Male
O-Ring Material
- NBR
Output
- 10 to 90 % Ratiometric Voltage
Output Impedence
- ≤ 25 ohms
Overpressure & Static Pressure Limits
- 6 x Full Scale [psi: 21,760 (kPa: 150,000, bar: 1,500) - Max.
Pressure Range
- bar: 0 to 600
- kPa: 0 to 60,000
- psi: 0 to 8,702
Pressure Type
- Absolute
- Gauge (Relative)
Repeatability
- ≤ ± 0.1 % of Full Scale
Response Time
- < 35 milliseconds for Air & Gases (MBS 2050)
- < 4 milliseconds for Liquids with Viscosity < 100 cSt
Shock
- 1 metre Free Fall as Per IEC 60068-2-32
- 500 G, 1 millisecond as Per IEC 60068-2-27
Span & Zero Effect
- ≤ ± 0.1 % of Full Scale/10K Typical - Thermal Zero Point Shift & Thermal Sensitivity (Span) Shift
- ≤ ± 0.2 % of Full Scale/10K, Max.
Storage Temperature
- -50° to 85° C (-58° to 185° F)
Supply Voltage
- 4.75-8 Vdc (5 Vdc Nominal) - Polarity Protected
Temperature Range
- -10° to 85° C (14° to 185° F) - Sensor (ATEX Zone 2)
- -40° to 85° C (-40° to 185° F) - Normal Temperature for Sensor
Torque
- 30 to 35 Nm (265 to 310 In/Lbs)
UNF/UNC Connection
- 9/16”-18 UNF Male-2A
Vibration
- Random Vibration: 7.5 G RMS, 5 to 1,000 Hz as Per IEC 60068-2-64
- Sinusoidal Vibration: 15.9 mm-pp, 5 to 25 Hz as Per IEC 60068-2-6
- Sinusoidal Vibration: 20 G, 25 to 2,000 Hz as Per IEC 60068-2-6
Wetted Materials
- 316L Stainless Steel - EN 10088-1
- Cavitation, Liquid Hammer or Pressure Peaks
- Severe Industrial Environments
- Hydraulic Applications
