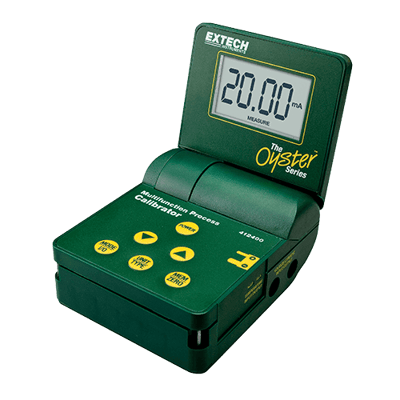

412400 Multifunction Process Calibrator
Brand: Extech412400 Multifunction Process Calibrator sources and measures Thermocouples (J, K, and T), mA, mV, and V devices.
The 24V Loop Supply drives current loads up to 1000 ohms.
Memory for 5 user settable output values of each type for fast calibrations.
Single/continuous step function for Voltage and Current.
Comes complete with six AA batteries and calibration cable with spade lug terminals.
Features- Source 0 to 24mA with 0.01mA resolution.
- Measure 0 to 50mA (0.1mA resolution).
- Select Type K, J, or T thermocouple for precision calibrations in °F/°C or mV.
- Output 0 to 1999mV or 0 to 10.00V.
- Measure 0 to 19.99V.
- Single/continuous step function for Voltage and Current.
- Self-contained 24V loop power supply drives current loads up to 1000Ohm.
- 5 stored calibration values of each type for fast calibrations.
- Complete with six AA batteries and calibration cable with spade lug terminals.
