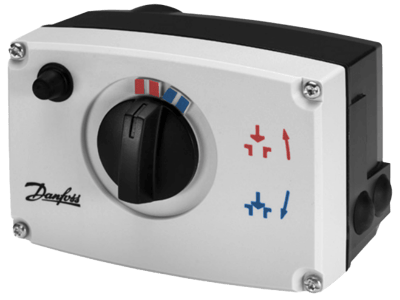

AMV 20 SL/23 SL/30 SL Three Point Control Actuator

Brand: Danfoss

The actuators for 3-point controls with or without safety function are suitable to be used with VS2, VM2, VB2 and AVQM valves.

The safety function on AMV 23 SL is activated automatically in case of power failure or if the power supply is switched off by the safety thermostat. This function provides safety shut off on power failure.

In addition to basic function such as manual control and position indication, the actuators are also equipped with force sensitive switch-off to ensure that actuators and valves are not exposed to overload. This function automatically ensures the self-adjustment of the end positions on the valve.

Actuators are also equiped with stroke limitation that can limit flow in valves. Limitation of stroke is designed with switch that can be set in any desireble position (stroke limit from 0 to 100%).
Features
  • The advanced design incorporates load related 'switch-off' to ensure that actuators and valves are not exposed to overloa
  • Digital feedback end position indication signal for valve end position is available by terminal 4 or 13
  • Low weight and robust

Specifications

Brand

Ambient Temperature Range

  • 0° to 55° C (32° to 131° F)

Approvals & Certifications

  • EN 14597

Approvals & Certifications

  • CE
  • EMC Directive 2004/108/EEC: EN 60730-1, EN 60730-2-14
  • LVD 73/23/EEC: EN 60730-1, EN 60730-2-14

Consumption

  • Power Consumption: 2.15 VA (AMV 20 SL)
  • Power Consumption: 7 VA (AMV 23 SL, AMV 30 SL)

Distance

  • Spindle Travel: 0.39” (10 mm)

Environmental Protection

  • IP54

Frequency

  • 50/60 Hz

Input Signal

  • Control Input: 3-Point

Process Temperature

  • Maximum

Speed

  • Spindle Speed: 15 sec/mm (AMV 20 SL, AMV 23 SL)
  • Spindle Speed: 3 sec/mm (AMV 30 SL)

Storage Temperature

  • Storage & Transport Temperature: -40° to 70° C (-40° to 158° F)

Supply Voltage

  • 230 V, 10 to -15 %
  • 24 V, 10 to -15 % (AMV 20 SL, AMV 23 SL)
