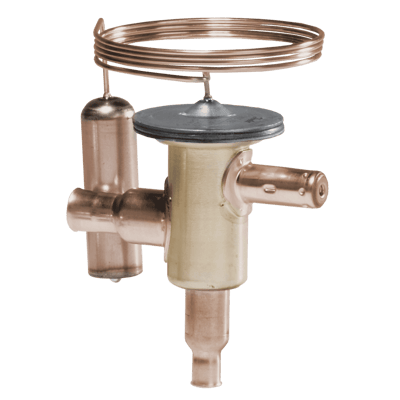

TUC/TUCE Thermostatic Expansion Valve
Brand: Danfoss
The TU series of thermostatic expansion valves is specifically developed for soldering into hermetic refrigeration systems.
The TU is made of stainless steel and therefore is well-suited to refrigeration systems for aggressive environments and for the food industry.
Danfoss also offers a wide range of options that makes possible countless valve combinations.
Differentiating Features: Stainless steel
- High body strength
- High corrosion resistance
- Highly vibration-resistant, flexible capillary tube
40% Reserve Capacity Over Nominal Rating
- Reduces pulldown time after defrost compared to conventional TXV's
Bi-metal Connections
- Fast and easy soldering without the need for a wet cloth
Precision Port Design
- Four major features contributing to superior repeatable performance over an extended valve life: Laser-welded power element insures diaphragm's structural integrity and lengthens life
- Precision-machined push-rod and bushing avoid the need for a packing gland
- Free-floating push-rod is self-aligning and eliminates binding. Precision-machined cone and orifice accurately meter refrigerant under all operating conditions
Stainless Steel Capillary Tube
- Tolerates more bending for easier installation and longer life
- Greater resistance to vibration during operation
Stainless Steel Bulb
- Self-aligning for fast and easy installation; secures with a single strap or Quick Clip
- More contact surface for better heat transfer
Built-in Strainer
- Angleway valve body: Unique 80 mesh strainer design capable of retaining more than twice the amount of dirt compared to that of a conventional design without restricting flow
- Straightway valve body: 100 mesh strainer
Compact Design
- Small footprint and light weight for compact installation
Laser Engraving
- Durable positive valve identification; no labels to peel off over time
- Patented Superheat Adjustment Device
- Adjust with 5/32" Allen wrench
- Versions with optional self-cleaning bleed port available
Bi-flow Operation
- Optional Quick Clip bulb fastener For fast and easy installation
Standard Configurations are as follows
- Internal (TUC) or external (TUCE) equalization
- Fixed orifice and strainer
- Fixed superheat
- Straightway or angleway body
Specifications
Brand
Applications
- Air Conditioning Systems
- Conventional Refrigeration Systems
- Heat Pump Systems
- Ice Machines
- Liquid Chillers
- Specialty Refrigeration Appliances
- Transport Refrigeration
Bulb Material
- Stainless Steel
Capillary Length
- Capillary Tube: 2.6 feet (0.8 m)
- Capillary Tube: 5 ft (1.524 m)
Capillary Material
- Stainless Steel
Cone Material
- Stainless Steel
Enclosure, Body Material
- Stainless Steel
Operating Pressure
- psi: 500 (kPa: 3,447, bar: 34.47) - Max.
- psi: 615 (kPa: 4,240, bar: 42.4) - Max.
Orifice Material
- Stainless Steel
Proof Pressure
- psi: 540 (kPa: 3,723, bar: 37.23) - Excluding R410A, Max.
- psi: 680 (kPa: 4,688, bar: 46.88) - with R410A, Max.
Temperature Range
- 0° to 100° C (32° to 212° F) - Bulb Temperature
- 0° to 121° C (32° to 250° F) - Valve Body Temperature
- 0° to 149° C (32° to 300° F) - Short-Lived Peak
- -40° to 10° C (-40° to 50° F)
Tube Inlet
- 1/2" Tube
- 1/4" Tube
- 3/8" Tube
Tube Outlet
- 1/2" Tube
- 3/8" Tube
- 5/8" Tube
