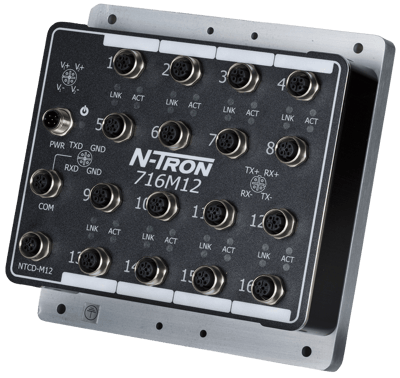

716M12-HV Industrial Ethernet Switch
Brand: Red Lion ControlsThe N-TRON 716M12-HV Industrial Ethernet Switch offers outstanding performance and ease of use.
With 16 10/100BaseTX M12 D-coded ports and high voltage capabilities, this fully managed switch is ideally suited for connecting Ethernet enabled devices in railway, industrial and security applications.
It is designed to meet or exceed the operating parameters of the connected equipment.
These include extended temperature ratings, extended shock and vibrations specs, redundant power inputs and high MTBF (greater than 2 million hours).
The switch features a rugged IP67- rated enclosure for resistance to dust and wash immersion.
Features- IP67-rated hardened metal enclosure
- Bulkhead mountable (optional DIN-rail mounting)
- Dustproof
- Protection against low/high pressure water jets
- Temporary immersion in water
- Sixteen 10/100BaseTX M12 D-Coded ports
- -40° to 80° C ( -40° to 176° F) operating temperature
- ESD and surge protection diodes on all ports
- Auto Sensing 10/100BaseTX, Duplex, and MDIX
- Store and Forward Technology
- Redundant power inputs (40-160 Vdc)
Specifications
Brand
Applications
- Industrial Applications
- Railways
- Security
Approvals & Certifications
- EN 60950-1 (Immunity), 61000-6-2, 61000-6-4 (Radiated & Conducted), 50155 (Railway Applications)
- GS (Geprufte Sicherheit)
Approvals & Certifications
- ABS for Shipboard Applications
- CE
- CPT
- EMC 2004/108/EC
- FCC Title 47, Part 15, Radio Frequency Devices, Subpart B, ANSI C63.4-2003, ICES-003
- GOST-R
- IEC 61000-4-2 (ESD), 61000-4-3 (RFAM), 61000-4-4 (EFT), 61000-4-5 (SURGE), 61000-4-6 (RFCM), 61000-4-8 (PFMF), 61000-4-11 (VDI)
- IEEE 1613 for Electric Utility Substations
- RoHS
Circuit Protection
- ESD Protection
- Surge
Communication
- EtherNet/IP
Electrical Connectors
- 10/100Base-TX (16 D-Coded 4-Pin), RS-232 (1 A-Coded 5-Pin), NTCD-M12 (1 A-Coded 5-Pin): M12 Female Ports
- Power: One (1) M12 A-Coded 4-Pin Male Port
- RJ45 Port
Environmental Protection
- IP67
Humidity
- 5 to 100 % RH, Non-Condensing
Indication
- LED
Input
- 40-160 Vdc
- 73 mA - Max.
Mounting
- DIN Rail Mounting
Operating Temperature
- -40° to 80° C (-40° to 176° F)
Power Supply
- N-Tron: 1.3 A at 24 Vdc
Shock
- 50 G at 10 ms (Bulkhead Mounted)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- 30 G, 10-200 Hz, Triaxial (Bulkhead Mounted)
Wiring
- Wiring Clearance Front: 4" (10.2 cm)
