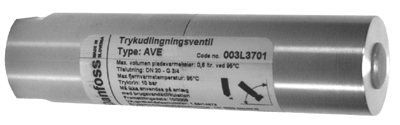

AVE Automatic Expansion Unit

Brand: Danfoss
Request Information
Favorite

AVE automatic expansion unit is used to compensate thermal expansion of the water inside small substations (Secondary - Tap water side).

Specifications

Brand

BSP Connection

  • G 3/4” A

Enclosure, Body Material

  • DZR Brass

Measuring Range

  • pH: 7 to 10

Media

  • Tap Water According to DIN 1988

Nominal Pressure

  • psi: 87 (kPa: 600, bar: 6)

O-Ring Material

  • Ethylene Propylene (EPR)

Process Temperature

  • 5° to 95° C (41° to 203° F)

Spring Material

  • Spring Steel

Volumetric Displacement

  • 0.945” Cube (15.5 cm³) at 10 bar - Max.
