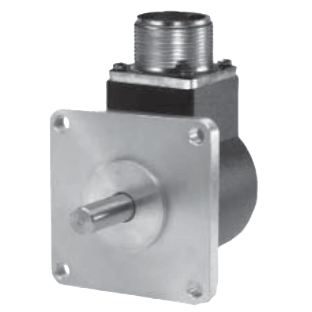

Model ZDH/ZNH Flange Mount Rotary Pulse Generator
Brand: Red Lion ControlsThe ZDH and ZNH series of sensors are heavy duty, extremely rugged, reliable, yet compact encoders designed for harsh factory and plant floor environments.
Both models are flange mount and conform to NEMA 4, 13 and IP66 standards.
Typical applications include motion control feedback, machine control, process control, elevator controls, conveyors, textile equipment, robotics and food processing.
Specifications
Brand
Applications
- Conveyors
- Elevator Controls
- Food Processing
- Machine Control
- Motion Control Feedback
- Process Control
- Robotics
- Textile Equipment
Approvals & Certifications
- Noise Immunity: BS EN 61000-4-2, EN 61000-4-4, DDENV 50141, DDENV 50204, EN 55022, EN 61000-6-2, EN 50081-2
- Noise Immunity: IEC 801-3
Electrical Connectors
- 7-Pin MS Typical Connector
Enclosure Finish
- Black Non-Corrosive Finish
Environmental Protection
- IP54
- IP66
- NEMA 13
- NEMA 4
Frequency
- Up to 1 MHz, Max.
Humidity
- 98 % Relative Humidity, Non-Condensing
Input
- 100 mV Peak-to-Peak at 0 to 100 kHz
Mounting
- Flange Mount (2”-ZDH, 2.5”-ZNH)
Operating Temperature
- 0° to 70° C (32° to 158° F)
Output
- 100 mA - Max.
- 40 Vdc, Max.
Output Format
- NPN Open Collector Transistor
Response Time
- Rise Time: < 1 microsecond
Shock
- 75 G at 11 milliseconds
Size
- 0.375” (9.5 mm)
Speed
- Maximum
Storage Temperature
- -25° to 85° C (-13° to 185° F)
Supply Voltage
- 4.75-28 Vdc, 100 mA - Max.
Torque
- 3 In/Lbs (21.18 Nmm)
